SGR-10 Customizable/perforated/sheet Round Magnet

Home / Products / Round Magnet / SGR-10 Customizable/perforated/sheet Round Magnet

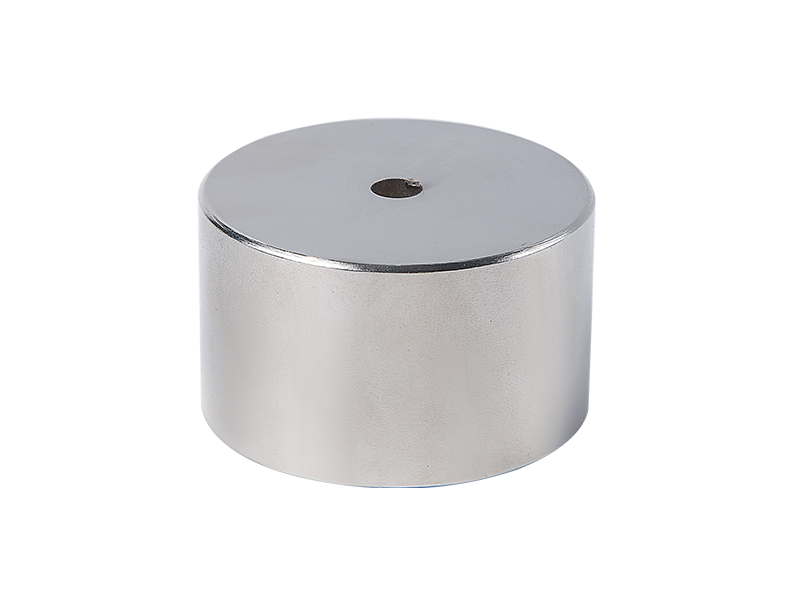

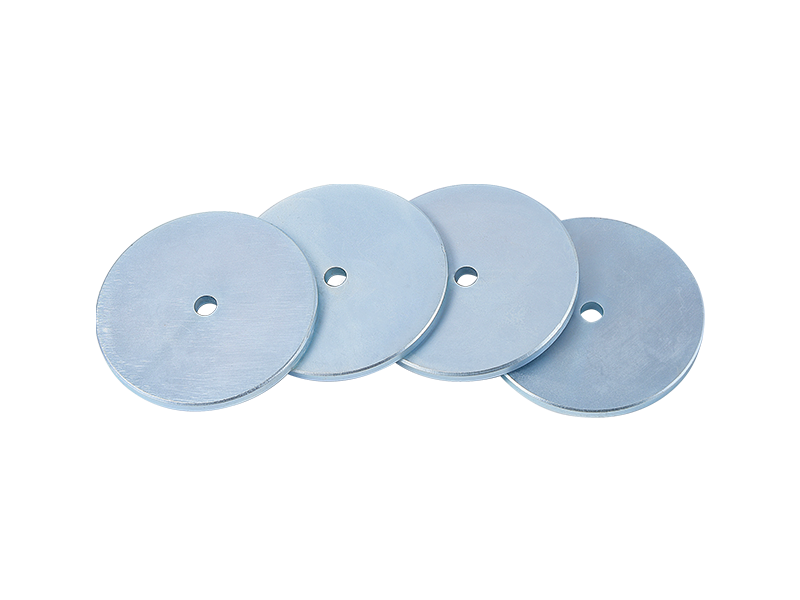

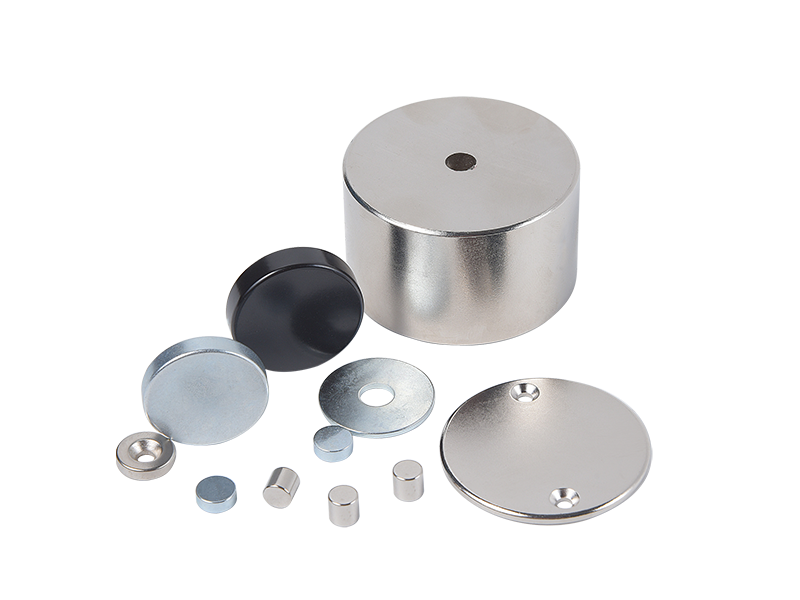

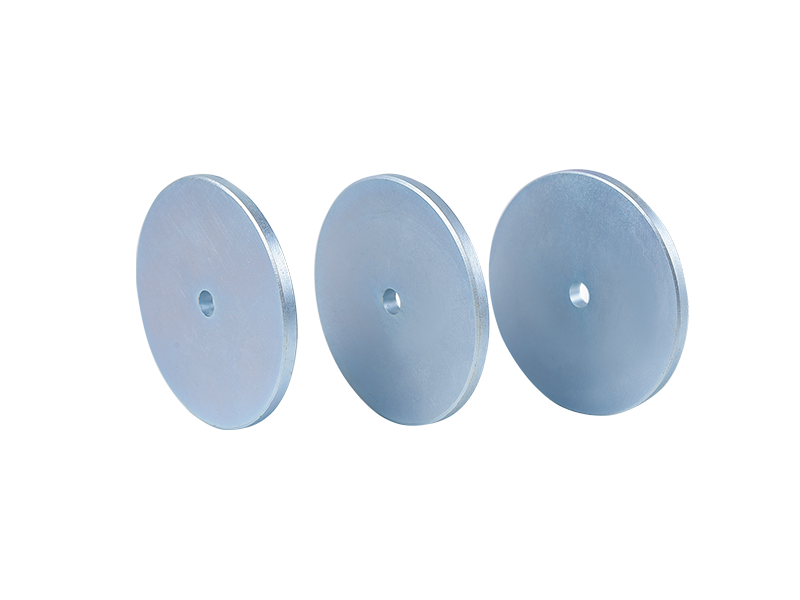

SGR-10 Customizable/perforated/sheet Round Magnet

SGR-10 Customizable/perforated/sheet Round Magnet

There are N35-N50, N33H-N48H, N33SH-N45SH, N27UH-N42UH, N27EH-N38EH series, and specifications form outside diameters Φ1.5-Φ180, inner diameters Φ1-Φ95, diamond 150×150×100, It can also process various products such as plain weave, rapeseed, diamond, annular, spherical, special-shaped and other products according to customer requirements.

  • 170
  • 168
  • 169
Inquiry PDF-Download
  • Specifications
  • Application Area
  • Other Irregular Shape, Can Be Manufacture According To Customer's Sample Or Blueprint.
    Shape Schematic DIMMENSIONS NOMINAL TOLERANCE
    RING Ring magnet D：Outer Diameter
    d    ：Inner Diameter
    H    ：Thickness    		 0UTER DIA
    +0.1 mm
    INNER DIA
    +0.1 mm
    THICKNESS
    +0.1mm
    DISC Ring magnet D：Outer Diameter
    H    ：Thickness
    DIAMETER
    +0.1 mm
    THICKNESS
    +0.1mm
    Other Irregular Shape, Can Be Manufacture According To Customer's Sample Or Blueprint.
    Magnetic Characteristics & Physical Properties of Sintered Ferrite.
    Magnetic Characteristics & Physical Properties of Sintered Ferrite
    Grade Iso/Anisotropic Remanence
    		 Coercivity lntrinsic Coercivity
    		 Max.Energy Product
    ISO/ANISO BrmT
    (KGs)    		 bHc kA/m
    bHc (KOe)    		 iHc kA/m
    iHc (KOe)    		 (BH)max KJ/m3
    (MGOe)
    Y10 ISO 200-235
    2.0-2.35    		 125-165
    1.57-2.01    		 210-280
    2.64-3.52    		 6.8-9.5
    0.8-1.2
    Y15 ISO 240-270
    2.4-2.7    		 160-170
    2.01-2.43    		 200-260
    2.33-3.12    		 9.5-15
    1.3-2.1
    Y25 ANISO ≥370
    ≥(3.7)    		 ≥168
    ≥2.1    		 ≥176
    ≥2.2    		 ≥23.9
    ≥3.0
    Y30 ANISO ≥380
    ≥(3.8)    		 ≥176
    ≥2.2    		 ≥180
    ≥2.225    		 ≥27.5
    ≥3.45
    Y30BH ANISO ≥380
    ≥(3.8)    		 ≥224
    ≥2.8    		 ≥232
    ≥2.9    		 ≥27.25
    ≥3.1
    Y30H-1[C-8] ANISO ≥385
    ≥(3.85)    		 ≥235
    ≥2.95    		 ≥245
    ≥3.07    		 ≥30.02
    ≥3.8
    Y30H-2 ANISO ≥400
    ≥(4.0)    		 ≥275
    ≥3.45    		 ≥310
    ≥3.89    		 ≥31.6
    ≥4.0
    Y35 ANISO ≥410
    ≥(4.1)    		 ≥220
    ≥2.76    		 ≥225
    ≥2.82    		 ≥31.6
    ≥4.6
    Remark:
    ☆The above-mentioned data of Magnetic parameters and physical properties are given at room temperature.
    Other Irregular Shape, Can Be Manufacture According To Customer's Sample Or Blueprint.
    TYPE DIRECTIONS OF MAGNETIZATION DIMMENS IONS NOMENCLATURE
    Axial magnetization D：outer diameter
    d    ：inside diameter
    H    ：thickness    		 HD*d*H
    Multilevel magnetization
    radial magnetization
    Same performance
    Axial magnetization D：outer diameter
    H    ：thickness    		 ZYD*H
    Multilevel magnetization
    radial magnetization
    Same performance
    Other Irregular Shape, Can Be Manufacture According To Customer's Sample Or Blueprint.
